719105BSB
Leda Care Invisi Series II® Wall Faced Suite with Backrest and Caravelle Care Single Flap Seat - Sorrento Blue
RRP $4943.00
Sorrento Blue
_PL_2%20-%20Copy.jpg)
_PL_2 - Copy.jpg)
Product overview
Technical info
Advice
Related Products
Product overview

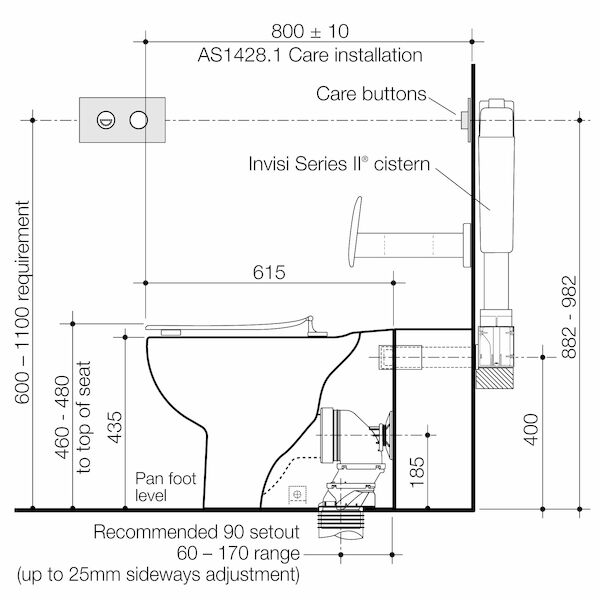

- -Meets AS1428.1 Access and Mobility requirements by locally extending the wall to provide required pan projection and used in conjunction with backrest, single flap seat and raised height buttons
- Leda Care Easy Height back inlet pan, ideal for the elderly or people with restricted movement
- Extended 800mm pan projection (by locally extending wall) suitable for wheelchair use. Spacing box is not included
- Universal trap pan for S or P trap installations
- Caroma Uni–Orbital® connector provides flexibility with aligning the waste outlet
- Caroma Adjustable Flushpipe provides flexibility with aligning water inlet to the pan
- For undercounter installation use fixed flushpipe code: 237222
- Includes Caravelle Care single flap seat in either white, sorrento blue or anthracite grey
- Includes Caroma stainless steel Backrest
- Raised buttons sold separately, Includes rough in and fit out kits
Technical Information
Specifications
item code719105BSB
product typesCare Suites
rangeLeda
colourSorrento Blue
item materialVitreous China
trap typeUniversal
inlet typeConcealed Cistern
pan height435 mm
pan projection size800 mm
CleanflushNo
wels with flow rate flush volume 1WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
Product Codes
Leda Care Invisi Series II® Wall Faced Suite with Backrest and Caravelle Care Single Flap Seat - Sorrento Blue
719105BSBLeda Care Invisi Series II® Wall Faced Suite with Backrest and Caravelle Care Single Flap Seat - Sorrento Blue
719105BSB
719105BSBLeda Care Invisi Series II® Wall Faced Suite with Backrest and Caravelle Care Single Flap Seat - Sorrento Blue
719105BSB
