W45004SCW

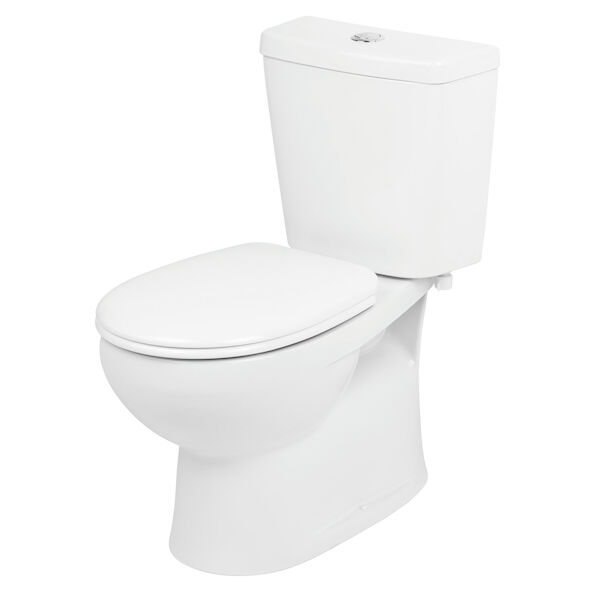

Venecia Close Coupled Bottom Inlet S Trap Suite, Std seat

RRP $780.00

White
White
https://stsharedaueastprodn8wg.blob.core.windows.net/pim-assets/ProductThumbnail/W45004SCW_BK_Image_HeroImage_6250_ori_1772px_1772px_2013Dec19102537.jpghttps://stsharedaueastprodn8wg.blob.core.windows.net/pim-assets/ProductThumbnail/W45004SSC-venecia-cc-suite.jpg
Product overview
Technical info
Advice
Related Products
Product overview
  • WELS 4 star rated, 4.5/3L (3.5L avg/flush)
  • S Trap
  • Standard seat
  • Bottom inlet cistern
  • Round chrome button assembly
  • Vitreous china
  • Optional offset connector available (687270) to extend the S trap setout range to 100mm-180mm

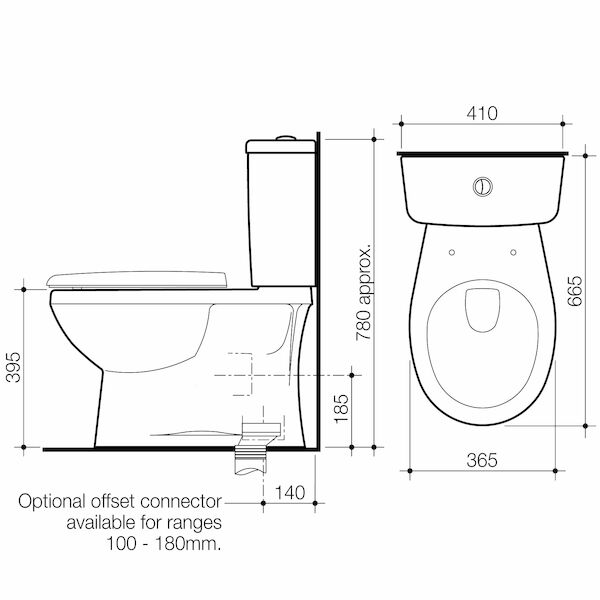

  • The image and line drawing on this page represent the S Trap suite
Technical Information
Specifications
item codeW45004SCW
product typesClosed Coupled Suites
rangeVenecia
colourWhite
item materialVitreous China
trap typeS Trap
inlet typeBottom Inlet
pan height395 mm
pan projection size665 mm
CleanflushNo
wels with flow rate flush volume 1WELS 4 Star Rated, 4.5L/3L (3.5L Average Flush)
Product Codes
Venecia Close Coupled Bottom Inlet P Trap Suite, Std seat
W45004PCW
Venecia Close Coupled Bottom Inlet P Trap SC Suite
W45004PSC
Venecia Close Coupled Bottom Inlet S Trap SC Suite
W45004SSC
Venecia Close Coupled Bottom Inlet S Trap Suite, Std seat
W45004SCW
